▪Super Strong Compressive and Load-bearing Capacity Carrying capacity up to 2500kg/㎡, impact protection level IK10.
▪Universal for Both Indoor and Outdoor Use Adjustable brightness, 800-4500nits, unchanged grayscale, protection level IP65.

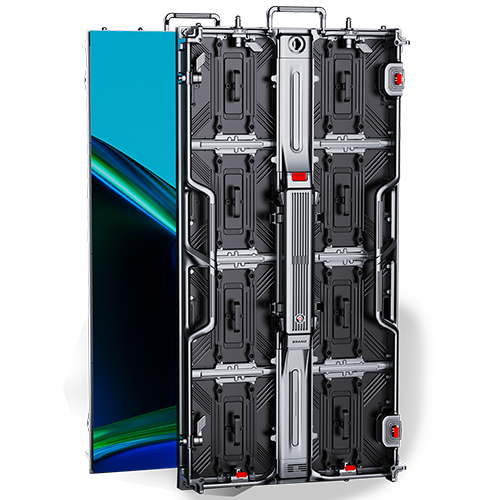

▪Quick Installation and Maintenance Modular design of the cabinet, easy installation and replacement of a single cabinet.
▪Creative Splicing Unique cabinet structure design, which can be assembled in a staggered manner up and down, left and right, and front and back.
| Product Model | P2.5 | P2.604 | P2.976 | P3.91 | P4.81 | P5.2 | P6.25 |
| Module Resolution | 100*100 | 96*96 | 84*84 | 64*64 | 52*52 | 48*48 | 40*40 |
| Module Size | 250*250*18 | 250*250*18 | 250*250*18 | 250*250*18 | 250*250*18 | 250*250*18 | 250*250*18 |
| Cabinet Size | 500*500*78 | 500*500*78 | 500*500*78 | 500*500*78 | 500*500*78 | 500*500*78 | 500*500*78 |
| Cabinet Resolution | 200*200 | 192*192 | 168*168 | 128*128 | 104*104 | 96*96 | 80*80 |
| Module Weight | 0.75KG | 0.75KG | 0.75KG | 0.75KG | 0.75KG | 0.75KG | 0.75KG |
| Pixel Density | 160000 | 147456 | 112896 | 65536 | 43264 | 36864 | 25600 |
| Panel Flatness | ≤1mm | ≤1mm | ≤1mm | ≤1mm | ≤1mm | ≤1mm | ≤1mm |
| Brightness | ≥1300nit(Indoor) | ||||||
| Color Temperature | 6000-9300 adjustable | ||||||
| Viewing Angle(H/V) | 160°/160° | ||||||
| Average Power Consumption | 300W/m² | ||||||
| Max Power Consumption | 800W/m² | ||||||
| Drive Method | Constant current drive | ||||||
| Refresh Rate | 3840HZ/7680HZ | ||||||
| Operating Temperature | -20~50℃ | ||||||
| Operating Humidity | 10~90% | ||||||
| Intertactive Function | Pressure Sensor(Optional) | ||||||
