Outdoor Fixed LED Display-XDO Series
Outdoor Advertising LED Billboard Solution

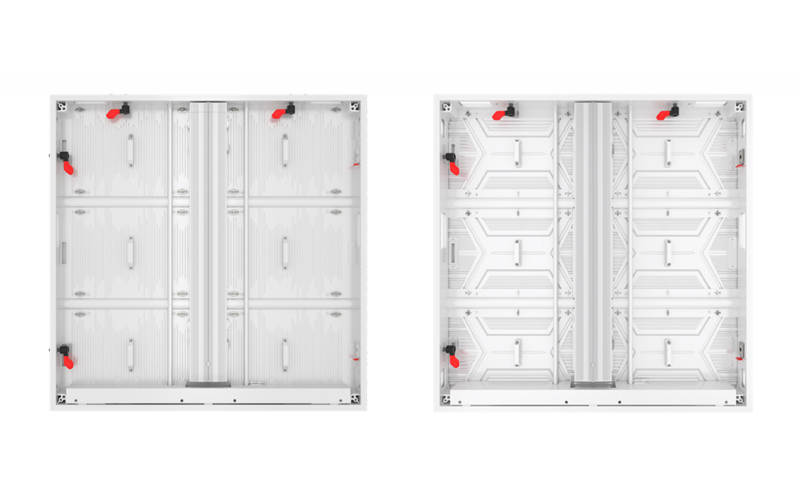

Cabinet:960*960mm
| Model | XDO4 | XDO5 | XDO6 | XDO8 | XDO10 |
| Pixel Pitch(mm) | 4.4 | 5.7 | 6.67 | 8 | 10 |
| Pixel Density(pixels/㎡) | 51,529 | 30,625 | 22,500 | 15,625 | 10,000 |
| LED Type | SMD1515 | SMD2020 | SMD1415 | SMD1415 | SMD1921 |

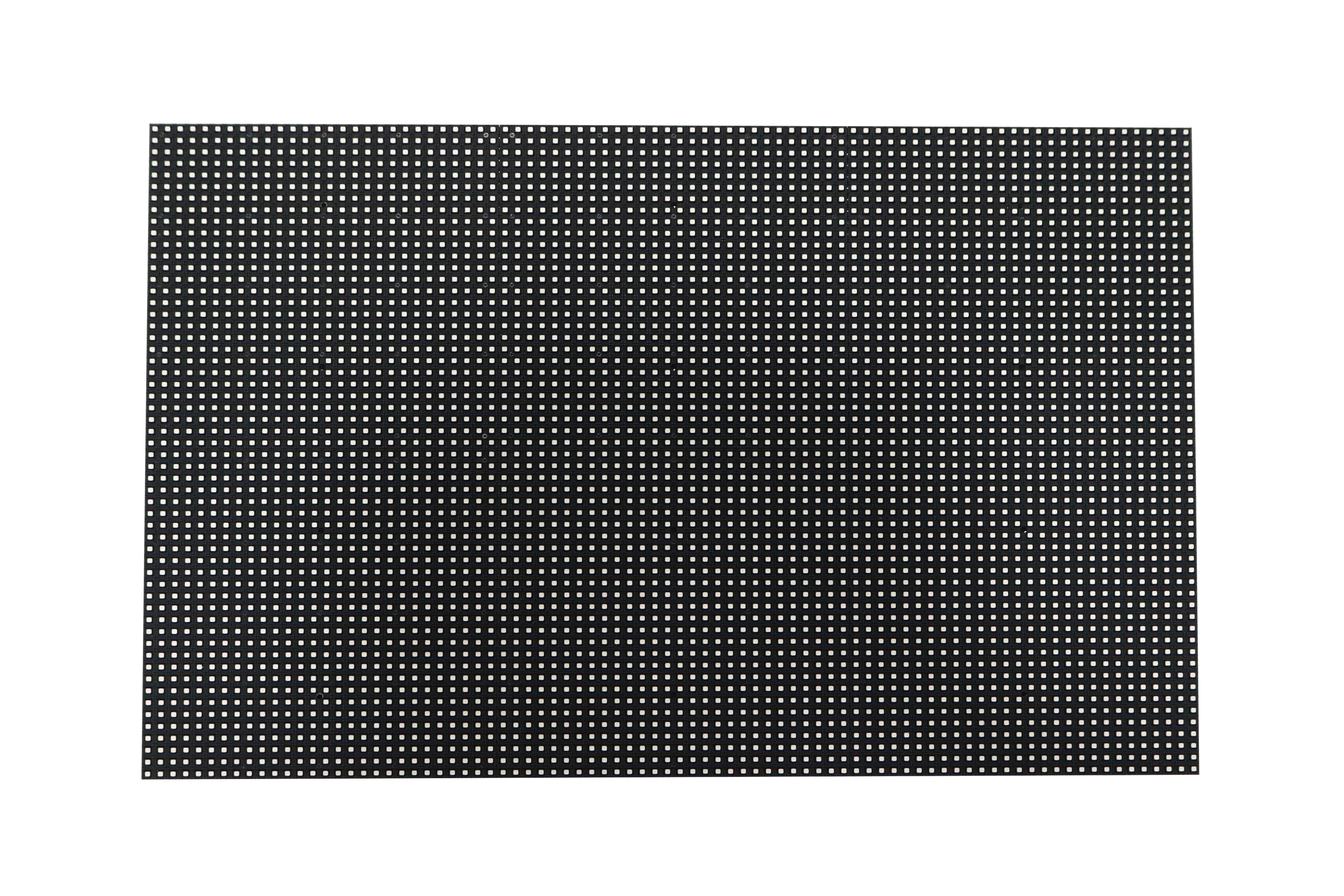

| Module Size(W*H) | 480*320mm | ||||
| Module Resolution(W*H) | 108*72 dots | 84*56 dots | 72*48 dots | 60*40 dots | 48*32 dots |
| Panel Size(W*H*D) | 960*960*92mm | ||||
| Panel Resolution(W*H) | 216*216 | 168*168 | 144*144 | 120*120 | 96*96 |
| Panel Material | Aluminum | ||||
| Panel Weight(kg) | 27kg | ||||
| Input Voltage | AC 100-240V | ||||
| Brightness(cd/㎡) | 5000～10000 | ||||
| Brightness Adjustment | Programmable/Automatic/Manual | ||||
| Viewing Angle(H/V) | 140°/120° | ||||
| Gray Scale(bit) | 13/14 | ||||
| Refresh Rate(Hz) | 3840/7680 | ||||
| Contrast Ratio | 5000:1 | ||||
| Color Temperature(K) | 2000-10000 (Adjustable) | ||||
| Max/Avg. Power Consumption(w/㎡) | 650/200 | ||||
| Serviceability | Front/Rear | ||||
| IP Rating | IP65 | ||||
| Operating Temperature | -40～60℃ | ||||
| Operating Humidity(RH) | 10%～90% | ||||
| Working Life(Hours) | 100000 | ||||
