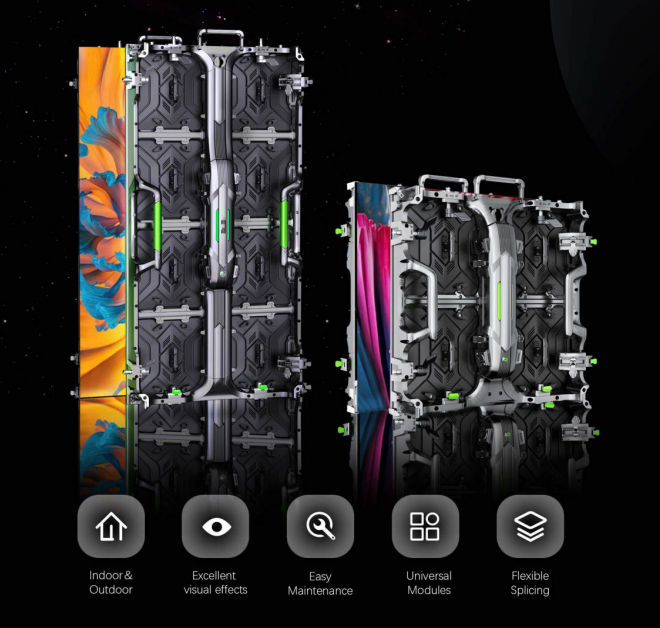

XRD Series supports both indoor and outdoor use for different styles of staging and events
Rental LED display for indoor and outdoor events
Cabniet :500*500mm/500*1000mm

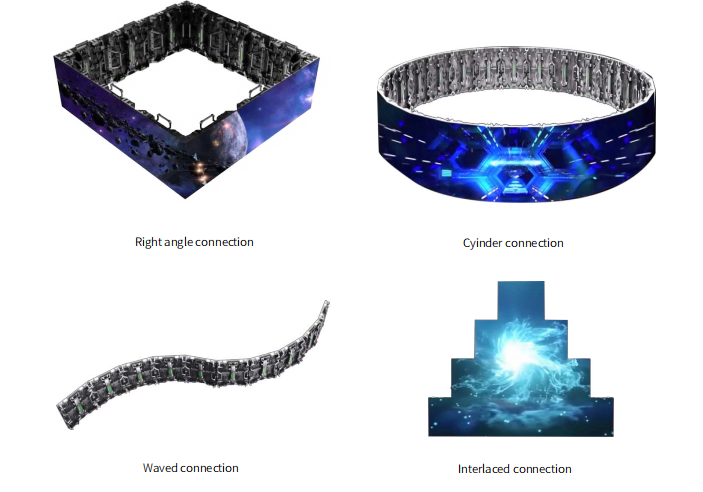

Flat curved or right angle splicing
| Model | XRD1.9 | XRD2.6 | XRD2.9 | XRD3.9 | XRDO2.6 | XRDO2.9 | XRDO3.9 |
| Pixel Pitch(mm) | 1.953 | 2.6 | 2.97 | 3.91 | 2.6 | 2.97 | 3.91 |
| Pixel Density(pixels/㎡) | 278,784 | 147,456 | 112,896 | 65,536 | 147,456 | 112,896 | 65,536 |
| LED Type | SMD1515 | SMD1515 | SMD1515 | SMD2020 | SMD1415 | SMD1415 | SMD1921 |
| Module Size(W*H) | 250*250mm | ||||||
| Module Resolution(W*H) | 128*128 dots | 96*96 dots | 84*84 dots | 64*64 dots | 96*96 dots | 84*84 dots | 64*64 dots |
| Panel Size(W*H*D) | 500*500*68/500*1000*68mm | ||||||
| Panel Resolution(W*H) | 256*256/256*512 | 192*192/192*384 | 168*168/168*336 | 128*128/128*256 | 192*192/192*384 | 168*168/168*336 | 128*128/128*256 |
| Panel Material | Die-casting Aluminum | ||||||
| Panel Weight(kg) | 7.5kg/12.5kg | ||||||
| Input Voltage | AC 100-240V | ||||||
| Brightness(cd/㎡) | 900 | 4000 | |||||
| Brightness Adjustment | Programmable/Automatic/Manual | ||||||
| Viewing Angle(H/V) | 140°/140° | ||||||
| Gray Scale(bit) | 13/14 | ||||||
| Refresh Rate(Hz) | 3840/7680 | ||||||
| Contrast Ratio | 7000:1 | 5000:1 | |||||
| Color Temperature(K) | 2000-10000 (Adjustable) | ||||||
| Max/Avg. Power Consumption(w/㎡) | 550/175 | 750/250 | |||||

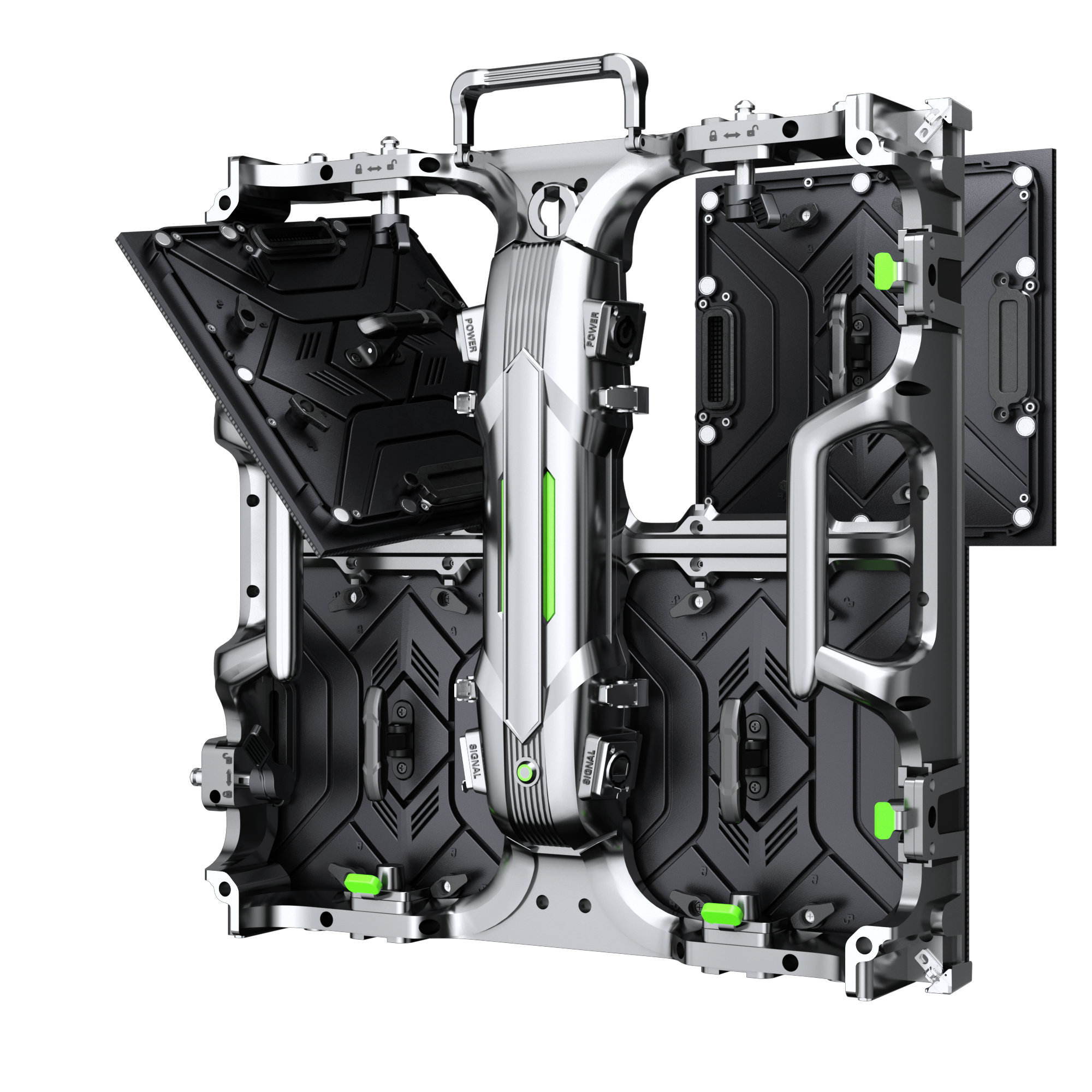

| Serviceability | Front/Rear | ||||||
| IP Rating | IP30 | IP65 | |||||
| Working Life(Hours) | 100,000 | ||||||
| Certificates | CB/EMC/LVD/ETL/FCC/TUV | ||||||
| Curvature | Standard Arc ﹣15°/﹣10°/﹣5°/0°/5°/10°/15° | ||||||
