XTI SeriesTransparent LED Display Creative Visual Solution

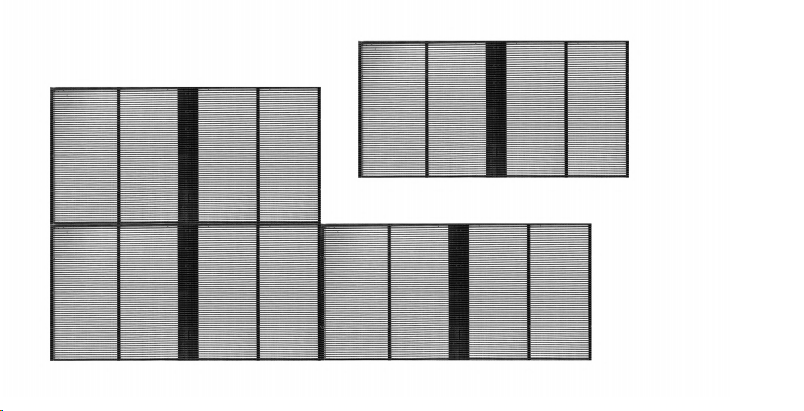

500*1000mm 1000*1000mm
▪No Air Conditioning Heat Dissipation Energy-saving and environmentally friendly
▪Adjustable Brightness Options for low and high brightness
▪High Light Transmittance Up to 75% light transmittance, does not affect indoor lighting
| Model | XTI2.6 | XTI3.9 | XTI5.2 | XTI10.4 |
| Pixel Pitch(mm) | 2.6-6.9 | 3.9-7.8 | 5.2-10.4 | 10.4-10.4 |
| Physical Density(dot/m) | 55296 | 32768 | 18432 | 9216 |
| Module Size(mm) | 500*125 | |||
| Panel Size W*H*D(mm) | 1000*500/1000*1000 | |||
| Module Resolution W*H(pixel) | 192*18 | 128*16 | 96*12 | 48*12 |
| Panel Resolution W*H(pixel) | 384*72/384*144 | 256*64/256*128 | 192*48/192*96 | 96*48/96*96 |
| Transparency Ratio | 45% | 65% | 60% | 60% |
| Weight(Kg/pc) | 4/8 | |||
| Input Voltage(V) | 100~240 | |||
| Brightness(nits) | 800～5000 | |||
| Brightness Adjustment | Programmable/Auto/Manual | |||
| Viewing Angle(H/N) | 140°/140° | |||
| Gray Scale(bit) | 14～16 | |||
| Refresh Rate(Hz) | 3840/7680 | |||
| Frame Rate(Hz) | 50/60 | |||
| Contrast Ratio | 6000:01:00 | |||
| Color Temperature(K) | 2000~10000(Adjustable) | |||
